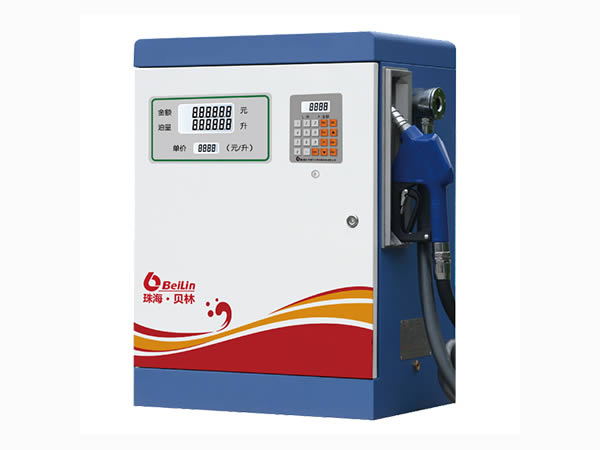

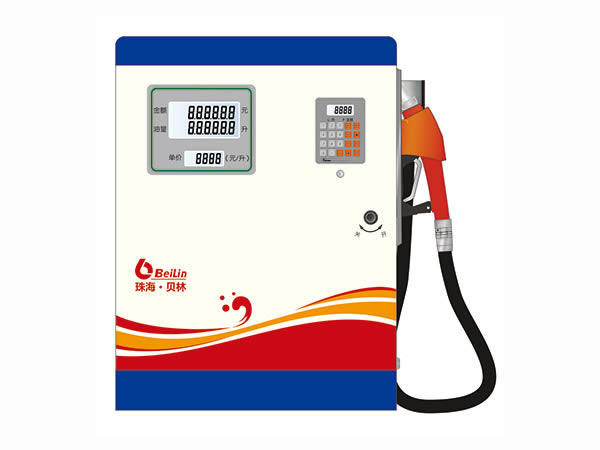

Fuel Pump and Dispenser (Small Dispenser with Self Pumping System)

Applications
1. As a small dispenser with a self-pumping system, our BL 03 LB series fuel pump and dispenser can be used for refueling not only in small or mobile filling stations, but also in some factories.
2. It is even applicable for filling liquid chemical materials on some production lines. (If you are planning on using the pump for this purpose, please contact us to see whether your chemical material may cause damage to the fuelling equipment).
3. With nozzles located in a lower height, our small fuel dispenser also works well in places with minimal extra space such as docks.

Features
1. This series fuel pump and dispenser can be configured with a self-priming pump or a submersible pump depending on customer requirements.
2. Although the fuel dispenser is small in size, its functions are not diminished in any way compared to larger models. This refueling device allows customers to fit different hydraulic parts to it according to their practical needs.
3. Meanwhile, the durable finish is able to keep the machine in good working condition in even the most severe conditions for years.

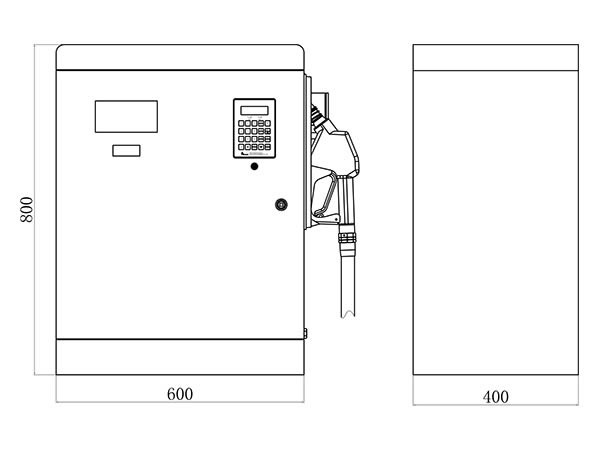

  • Structure diagram

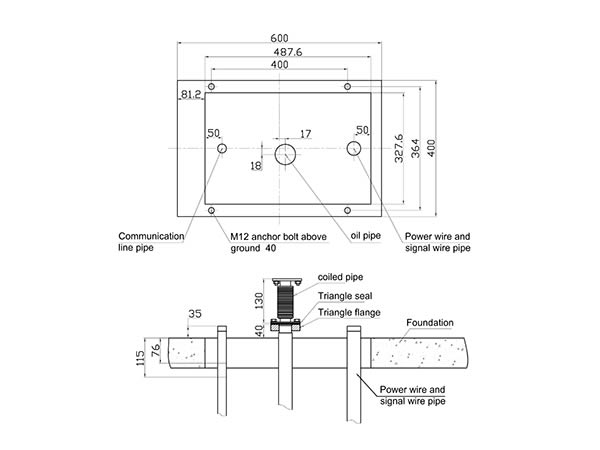

  • Base installation diagram
Model and Configuration of Fuel Pump and Dispenser
Production code Model Configuration
BL0411AC BL1111Z Self-priming pump, 1 type of fuel, 1 dispensing nozzle, 1 display
BL0411BC BL1111Z Submersible pump, 1 type of fuel, 1 dispensing nozzle, 1 display
Function Selection of Fuel Pump and Dispenser
Item/Series BL04 LB Series
IC card
China UnionPay card self-service payment ——
Coin-operated self-service payment ——
Ticket printer
Voice broadcast ——
Emergency stop switch ——
Domestic flowmeter
Imported flowmeter ——
Domestic fuel dispensing nozzle
Imported fuel dispensing nozzle ——
Metal keyboard
Breakaway valve ——
Variable frequency control
Solenoid valve
Fuel vapor recovery system ——
Stainless steel housing ——

Notes
Symbol description
Standard configuration ●
Optional configuration ○
Without this configuration——
