Fuel Pump and Dispenser (Dispenser with 1 to 8 Nozzles and Vapor Recovery Parts)

    1. 1-Nozzle Fuel Dispenser1-nozzle fuel dispenser is compact and can be equipped with a self-priming pump or a submersible pump.
      Configured with 1 nozzle, 2 displays and 1 metal keyboard, the petrol dispensing machine is easy to operate.
    1. 2-Nozzle Fuel DispenserTwo types of configurations are available for this oil dispensing machine. The first includes 2 dispensing nozzles, 4 displays and 2 metal keyboards. The second type includes 2 dispensing nozzles, 2 displays and 2 metal keyboards.
    1. 4-Nozzle Fuel Dispenser4-nozzle fuel dispenser comes with a nice appearance and may adopt a self-priming pump or a submersible pump. Standard configuration of our multi-nozzle fuel dispensing equipment includes 4 nozzles, 4 displays and 4 metal keyboards.
    1. 6-Nozzle Fuel Dispenser6-nozzle fuel dispenser is mainly available in the following two types of configurations. Type one: 6 dispensing nozzles, 6 displays and 6 metal keyboards; Type two: 6 dispensing nozzles, 4 displays and 4 metal keyboards.
    1. 8-Nozzle Fuel Dispenser8-nozzle fuel dispenser is configured with not only 8 dispensing nozzles, but also 8 displays and 8 metal keyboards. As a service station dispenser, it can be used to dispense 4 types of fuel. Our 8-nozzle fuel dispenser adopts the state-of-the-art ARM9 chip to achieve outstanding and stable performance.
    1. 1-Nozzle Fuel Dispenser with Shorter FrameSpecially designed for overseas customers, our 1-nozzle fuel dispensing equipment is lower in height than our standard products, which helps save space and reduce transportation cost.
    1. 2-Nozzle Fuel Dispenser with Shorter FrameAs a piece of fueling equipment specially designed for foreign customers, the 2-nozzle fuel dispenser with shorter frame is of lower height, making it space-saving and cost-efficient when it comes to transportation.
    1. 4-Nozzle Fuel Dispenser with Shorter Frame4-nozzle fuel dispenser with a shorter frame may is composed of a self-priming pump or submersible pump according to your needs. The dispenser with self-priming pump can be used to dispense 2 or 3 types of fuel

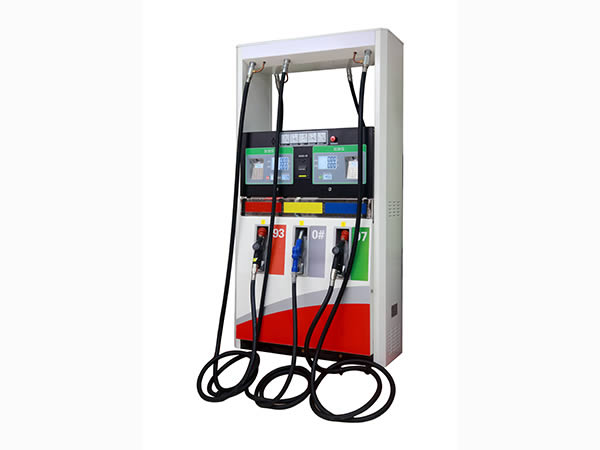

As a professional fueling equipment manufacturer, we have launched the BL10 XF series fuel pump and dispenser with 1 to 8 nozzles and vapor recovery parts. Featuring high performance and a streamlined appearance, our fuel dispensing equipment is the number one choice for large filling stations.

This series of fuel pumps and dispensers are available in various types, configurations, and functions. They employ the advanced ARM9 CUP to guarantee superior performance and high working stability. Additionally, we have an optional vapor recovery system which can be installed on every dispensing nozzle.

Our fuel pump and dispenser can be configured with 1, 2, 4, 6 or 8 (submersible pump) dispensing nozzles to satisfy the needs of different customers. Meanwhile, we also have 1-nozzle and 2-nozzle fuel dispensers with a shorter frame specially designed for overseas customers. They are fit for mobile filling stations (such as filling stations equipped with skid-mounted fuel dispensers).

Functional Characteristics
1. Modular design with durable computer parts makes for easy maintenance and upgrading of the fuel pump and dispenser.
2. High precision flow meter is used to ensure accurate flow measurement.
3. The computer components are interchangeable for all models of fuel dispensers.
4. Requiring no standby battery, all the refueling data will be stored even if the power supply of the fueling equipment is cut off.
5. Unique computer control system has a failure self-diagnosis function and makes the fuel dispensing machines resistant to severe power grid interference.
6. Excellent sealing guarantees our fuel pump and dispenser accommodate even inclement weather conditions.
7. The reliable imported connectors allow the customers to carry out on-site maintenance all by themselves.
8. Rounding key facilitates simple transactions.
9. The backlight can be turned on or off based on your practical needs.

Model Selection
Our company offers multiple models of fuel pumps and dispensers with flexible configurations.
Production code Model Configuration
BL1012A BL1113Z Self-priming pump, 1 type of fuel, 1 dispensing nozzle, 2 displays
BL1024A BL2113Z Self-priming pump, 2 types of fuel, 2 dispensing nozzles, 4 displays
BL1044A2 BL4113Q Self-priming pump, 2 types of fuel, 4 dispensing nozzles, 4 displays
BL1064A3 BL6113Q Self-priming pump, 3 types of fuel, 6 dispensing nozzles, 4 displays
BL1066A3 BL6113Q Self-priming pump, 3 types of fuel, 6 dispensing nozzles, 6 displays
BL1012B BL1113Z Submersible pump, 1 type of fuel, 1 dispensing nozzle, 2 displays
BL1024B BL2113Z Submersible pump, 2 types of fuel, 2 dispensing nozzles, 4 displays
BL1044B2 BL4113Q Submersible pump, 2 types of fuel, 4 dispensing nozzles, 4 displays
BL1064B3 BL6113Q Submersible pump, 3 types of fuel, 6 dispensing nozzles, 4 displays
BL1066B3 BL6113Q Submersible pump, 3 types of fuel, 6 dispensing nozzles, 6 displays
BL1088B4 BL8113Q Submersible pump, 4 types of fuel, 8 dispensing nozzles, 8 displays
Function Selection of Fuel Pump and Dispenser
Item/Series BL10 XF series
IC card
China UnionPay card self-service payment
Coin-operated self-service payment
Ticket printer
Voice broadcast
Emergency stop switch
Domestic flowmeter
Imported flowmeter
Domestic fuel dispensing nozzle
Imported fuel dispensing nozzle
Metal keyboard
Breakaway valve
Variable frequency control
Solenoid valve
Fuel vapor recovery system
Stainless steel housing ——

Notes
Symbol description
Standard configuration ●
Optional configuration ○
Without this configuration——

Technical Parameters of Fuel Pump and Dispenser
Flow rate 5~45 (L/min)
Suction distance 6 (m)
Flow measurement accuracy ±0.3%
Temperature range -40℃~+60℃
Relative humidity 45%~95%
Noise ≤80dB
Inlet vacuum degree ≥54kPa
Price range 0.01~99.99USD/L
One service count range Liter: 0.00~9999.99L
Sale: 0.00~9999.99USD
Cumulative count range Sale: 0.00~9999999999.99USD
Liter: 0.00~9999999999.99L
Power supply AC380V±20%
AC220V±20%
