Fuel Pump and Dispenser (Dispenser with 1 to 4 Dispensing Nozzles)

    1. 1-Nozzle Fuel DispenserThis single nozzle fuel dispenser is designed to dispense 1 type of fuel and collect the refueling vapor for reuse. Thanks to its top hood with a convex edge, unique double-deck door and top-mounted fuel outlet, our 1-nozzle fuel dispenser has an elegant and compact appearance.
    1. 2-Nozzle Fuel DispenserOur 2-nozzle fuel dispenser can be installed with a self-priming pump or a submersible pump.
      This fuel dispensing facility looks elegant and compact since it has a top hood with convex edge and a special two-deck door.
    1. 4-Nozzle Fuel Dispenser4-nozzle fuel dispenser is able to be fitted with a self-priming pump or a submersible pump. Therefueling equipment with a built-in pump meets the demand for filling 1-2 types of fuel and the one with a submersible pump is capable of dispensing 1-4 types of fuel.
    1. 1-Nozzle Fuel Dispenser with Shorter Frame1-nozzle fuel dispenser with a shorter frame is specially designed for export and is quite suitable for mobile filing stations (for example, filling stations made up of skid-mounted fuel dispensing systems). With no top hood, this fuel dispensing equipment is lower in height, simplifying transportation.
    1. 2-Nozzle Fuel Dispenser with Shorter Frame2-nozzle fuel dispenser with shorter frame features a lower height since it does not have a top hood. Its smaller size helps ease transportation efforts and cost for buyers and makes the oil dispensing machine ideal for mobile filling stations (like filling stations consisting of skid-mounted refueling pumps).

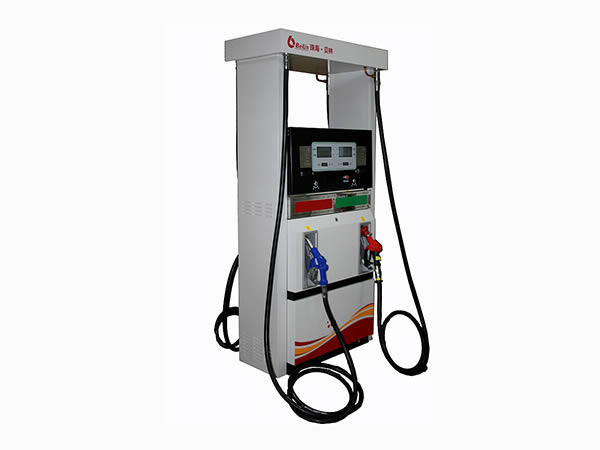

The BL02 LC series fuel pump and dispenser is a kind of pump featuring 1 to 4 dispensing nozzles. Its classic and elegant appearance brings a clean look to filling stations. Coming in a compact structure and having the advantages of variable frequency function, low noise and energy efficiency, our multi-nozzle fuel dispensers are economical choices for standard retail filling stations and large-capacity filling stations.

Functional Advantages
1. This series of fuel pumps and dispensers adopt a modular design with durable computer parts, making for easy machine maintenance and upgrading.
2. Reliable flow measurement is ensured by a high precision flowmeter.
3. Needing no standby battery, our fuel pump and dispenser is able to save refueling data for over 10 years even if the power supply is cut off.
4. The specially designed computer control system not only has a failure self-diagnosis function, but also has the capacity to protect the fuel pump and dispenser against severe power grid interference.
5. Featuring a tight seal, our refueling equipment accommodates all weather conditions.
6. The imported connectors are robust and facilitate customers carrying out on-site maintenance by themselves.
7. There is a key for rounding, which allows for simple transactions.
8. You can turn on or turn off the backlight according to your own needs.

Model Selection of Fuel Pump and Dispenser
Production code Model Configuration
BL0212A BL1113Z Self-priming pump, 1 type of fuel, 1 dispensing nozzle, 2 displays
BL0224A BL2113Z Self-priming pump, 2 types of fuel, 2 dispensing nozzles, 4 displays
BL0244A2 BL4113Q Self-priming pump, 2 types of fuel, 4 dispensing nozzles, 4 displays
BL0212B BL1113Z Submersible pump, 1 type of fuel, 1 dispensing nozzle, 2 displays
BL0224B BL2113Z Submersible pump, 2 types of fuel, 2 dispensing nozzles, 4 displays
BL0244B2 BL4113Q Submersible pump, 2 types of fuel, 4 dispensing nozzles, 4 displays
Function Selection of Fuel Pump and Dispenser
Item/Series BL02 LC series
IC card
China UnionPay card self-service payment
Coin-operated self-service payment ——
Ticket printer
Voice broadcast
Emergency stop switch
Domestic flowmeter
Imported flowmeter ——
Domestic fuel dispensing nozzle
Imported fuel dispensing nozzle
Metal keyboard
Breakaway valve
Variable frequency control
Solenoid valve
Fuel vapor recovery system
Stainless steel housing ——

Notes
Symbol description
Standard configuration ●
Optional configuration ○
Without this configuration——

Technical Parameters of Fuel Pump and Dispenser
Flow rate 5~45 (L/ min)
Suction distance 6 (m)
Flow measurement accuracy ±0.3%
Temperature range -40℃~+60℃
Relative humidity 45%~95%
Noise ≤80dB
Inlet vacuum degree ≥54kPa
Price range 0.01~99.99USD/L
One service count range Liter: 0.00~9999.99L
Sale: 0.00~9999.99USD
Cumulative count range Sale: 0.00~9999999999.99USD
Liter: 0.00~9999999999.99L
Power supply AC380V±20%
AC220V±20%

Size: 2080×1000×544
