Fuel Pump and Dispenser (Dispenser with 1 or 2 Dispensing Nozzles)

    2. 1-Nozzle Fuel DispenserThis single nozzle fuel dispensing machine is designed for pumping 1 type of fuel and its standard configuration includes 1 dispensing nozzle with a refueling vapor recovery function, 2 text displays, and 1 metal keyboard.
    2. 2-Nozzle Fuel DispenserThe 2-nozzle fuel dispenser can be fitted with either a self-priming pump or a submersible pump.
      The double-nozzle refueling machine is a cost-effective product suitable for dispensing 1 or 2 types of fuel. Each of the nozzles has a fuel vapor recovery function.
    2. 1-Nozzle Fuel Dispenser with Shorter FrameThis 1-nozzle fuel dispenser with a shorter frame has a simple construction and is lower in height than other products. We adopt such a special design to help reduce the transportation cost for overseas customers.
    2. 2-Nozzle Fuel Dispenser with Shorter FrameThe 2 dispensing nozzles allow this refueling equipment to dispense 1 or 2 types of fuel and they both can achieve fuel vapor recovery.
      This 2-nozzle fuel dispenser features a simple yet functional design with the nozzles and fuel outlet set on its lateral sides.

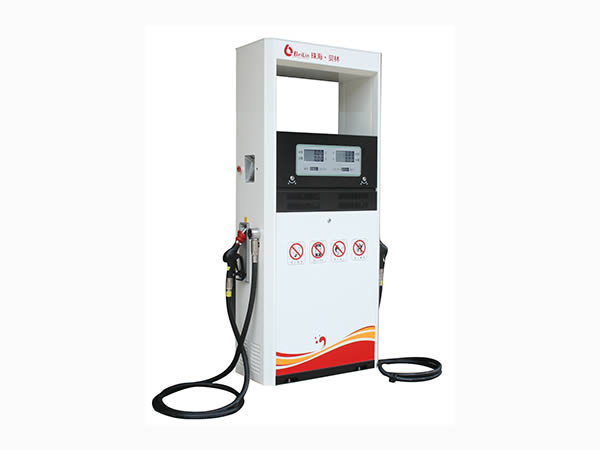

The BL07 XC series fuel pump and dispenser is a cost-effective machine with 1 or 2 dispensing nozzles. It perfectly combines durability, ease of maintenance, and user-friendly refueling experience.

Advantages
1. Coated with an anti-corrosive paint, our fuel pump and dispenser is able to withstand even the most severe environments.
2. The high performance fuel dispenser is durable and has outstanding working stability. The reliability of the pump leads to less downtime and lower maintenance costs.
3. Available in various configurations, this series fuel pump and dispenser can satisfy the needs of customers all around the world.

Our company provides the following models for this series of fuel dispensing machines.

Model Selection of Fuel Pump and Dispenser
Production code Model Configuration
BL0712A BL1112Z Self-priming pump, 1 type of fuel, 1 dispensing nozzle, 2 displays
BL0724A BL2112Z Self-priming pump, 2 types of fuel, 2 dispensing nozzles, 4 displays
BL0712B BL1112Z Submersible pump, 1 type of fuel, 1 dispensing nozzle, 2 displays
BL0724B BL2112Z Submersible pump, 2 types of fuel, 2 dispensing nozzles, 4 displays
Function Selection of Fuel Pump and Dispenser
Item/Series BL07 XC series
IC card ○
China UnionPay card self-service payment ○
Coin-operated self-service payment ——
Ticket printer ○
Voice broadcast ○
Emergency stop switch ●
Domestic flow meter ●
Imported flow meter ——
Domestic fuel dispensing nozzle ●
Imported fuel dispensing nozzle ○
Metal keyboard ○
Breakaway valve ○
Variable frequency control ○
Solenoid valve ●
Fuel vapor recovery system ○
Stainless steel housing ——

Notes
Symbol description
Standard configuration ●
Alternative configuration ○
Without this configuration——

Technical Parameter of Fuel Pump and Dispenser
Flow rate 5~45 (L/min)
Suction distance 6 (m)
Flow measurement accuracy ±0.3%
Temperature range -40℃~+60℃
Relative humidity 45%~95%
Noise ≤80dB
Inlet vacuum degree ≥54kPa
Price range 0.01~99.99USD/L
One service count range Liter: 0.00~9999.99L
Sale: 0.00~9999.99USD
Cumulative count range Sale: 0.00~9999999999.99USD
Liter: 0.00~9999999999.99L
Power supply AC380V±20%
AC220V±20%
