Fuel Pump and Dispenser (Dispenser with Gasoline and Diesel Transfer Pump)

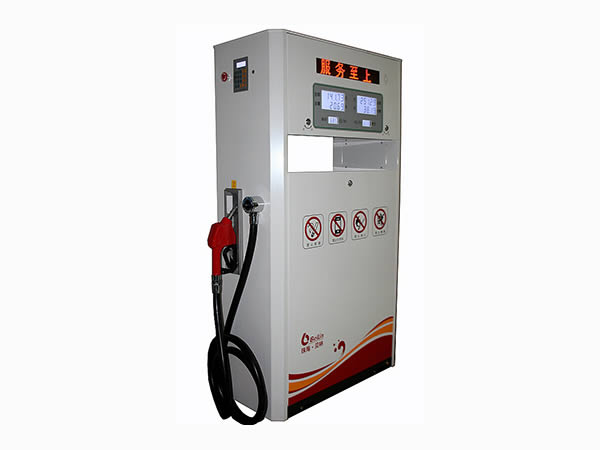

    1. Fuel Dispenser with 1 Dispensing NozzleIt has an attractive appearance and a user-friendly operation system. The LED dot matrix displays are configured to our fuel dispensing equipment for message display.
    1. Fuel Dispenser with 2 Dispensing NozzlesFuel dispenser with 2 dispensing nozzles can either employ a self-priming pump or a submersible pump based on your requirement. In addition to common flow rate, it can also be designed with large flow rate of 150-200L/min), which greatly shortens refueling time.

Our BL05 KB series fuel pump and dispenser has a compact structure that takes up minimal space. As an economical dispenser with a gasoline and diesel transfer pump, this fueling equipment possesses outstanding refueling performance and offers a wide selection of flow rates ranging from 45L/min to 200L/min. The large-flow fuel dispenser greatly shortens refueling times.

The fuel pump and dispenser is configured with an LED dot-matrix display which can be used to show information or alerts to the user. Thanks to its energy saving, low noise and variable frequency, our multi-nozzle fuel dispensing machine is an ideal choice for refueling different kinds of vehicles and equipment in retail fuel stations, wharfs, parking lots, etc.

Characteristics
1. Modular design with durable computer parts makes our fuel pump and dispenser easy to maintain and upgrade.
2. Reliable and high precision flow meter guarantees accurate flow measurement.
3. All refueling data can be saved for 10 years even when the power supply for the fuel dispensing machine is cut off and there is no standby battery.
4. The unique computer control system features a failure self-diagnosis function and protects the fueling equipment against severe power grid interference.
5. Thanks to the fully sealed machine body, our fuel pump and dispenser is resistant to rain, and other inclement weather conditions.
6. Robust imported connectors facilitate on-site maintenance by the customers themselves.
7. A key for sale amount rounding makes for a simple transaction process.
8. The backlight can be turned on or off depending on your needs.

Model Selection
There are various configuration schemes available for the BL05 KB series fuel pump and dispenser to meet your needs.
Production code Model Configuration
BL0512A BL1111Z Self-priming pump, 1 type of fuel, 1 dispensing nozzle, 2 displays
BL0524A BL2111Z Self-priming pump, 2 types of fuel, 2 dispensing nozzles, 4 displays
BL0512B BL1111Z Submersible pump, 1 type of fuel, 1 dispensing nozzle, 2 displays
BL0524B BL2111Z Submersible pump, 2 types of fuel, 2 dispensing nozzles, 4 displays
Function Selection of Fuel Pump and Dispenser
Item/Series BL05 KB series
IC card
China UnionPay card self-service payment
Coin-operated self-service payment ——
Ticket printer
Voice broadcast
Emergency stop switch
Domestic flowmeter
Imported flowmeter ——
Domestic fuel dispensing nozzle
Imported fuel dispensing nozzle
Metal keyboard
Breakaway valve
Variable frequency control
Solenoid valve
Fuel vapor recovery system
Stainless steel housing

Notes
Symbol description
Standard configuration ●
Optional configuration ○
Without this configuration——

Technical Parameters of Fuel Pump and Dispenser
Flow rate 45~150 (L/min)
Suction distance 6 (m)
Flow measurement accuracy ±0.3%
Temperature range -40℃~+60℃
Relative humidity 45%~95%
Noise ≤80dB
Inlet vacuum degree ≥54kPa
Price range 0.01~99.99 USD/L
One service count range Liter: 0.00~9999.99L
Sale: 0.00~9999.99USD
Cumulative count range Sale: 0.00~9999999999.99USD
Liter: 0.00~9999999999.99L
Power supply AC380V±20%
AC220V±20%

Size: 1616×900×440
